Motorcycle waterproof controller   SC5X-MT

Product Introduction

The switch SC5X is a all-in-one controller with integrated relay. It is 10-30V, dual color LED background rubber buttons.The switch hasover-temperature protection and short circuit protection function. Fast and convenient mounting or dismantling with 3M Adhesive.

Features

• 10-30VInput voltage. Includes 5 buttons, one on/off button and 4 DIY buttons
• 4 x 5 Amp output switch
• IP67, waterproof controller
• Each Output built-in 5 amp fuse. Max Power 20A.
• Selectable icon sticker to clearly label your panel
• 6.1/4" thread stand screw hole for bracket mount
• 7.Universal compatibility controller
• 8.The switch has over-temperature protection and short circuit protection
• 9.Mounting bracket is for options
• 10.ECE R10 approved
• 11.Dual color led backgroud, much more visible

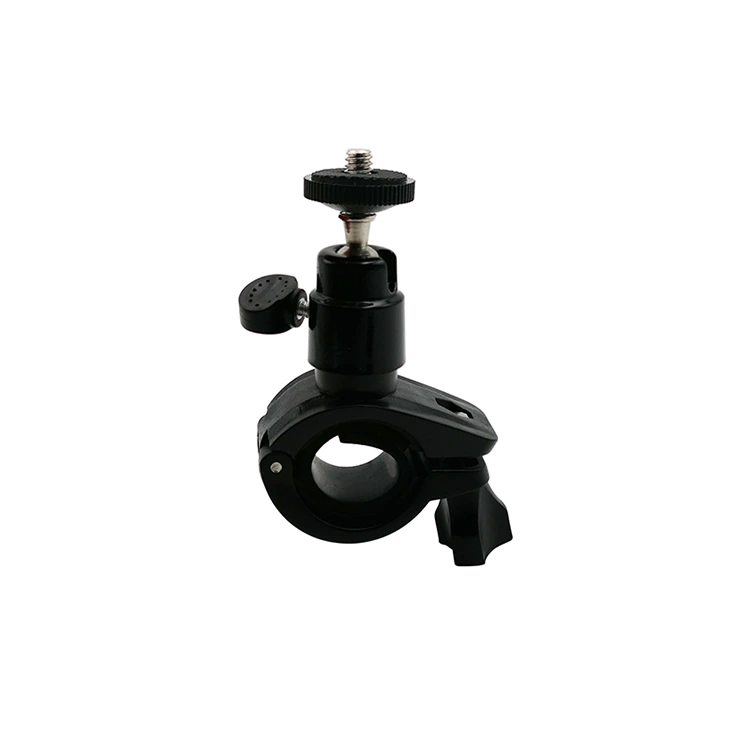

Specific bracket for motorcycle

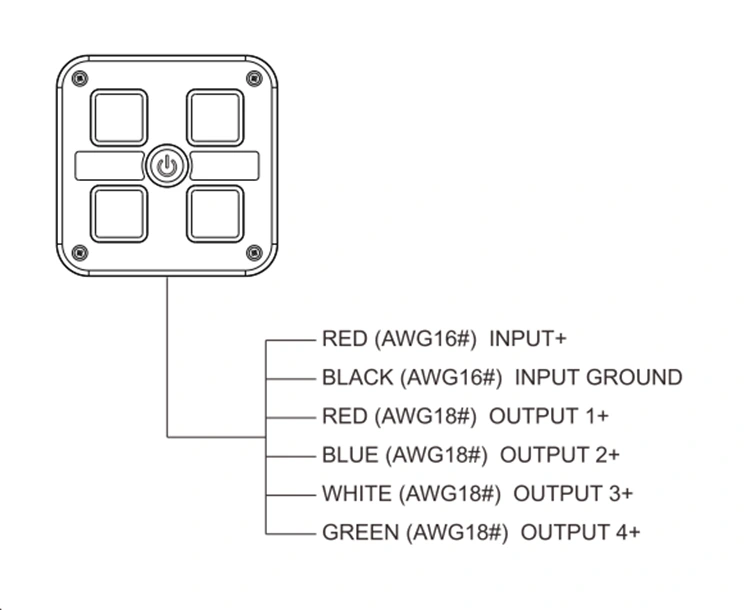

Wiring drawing
